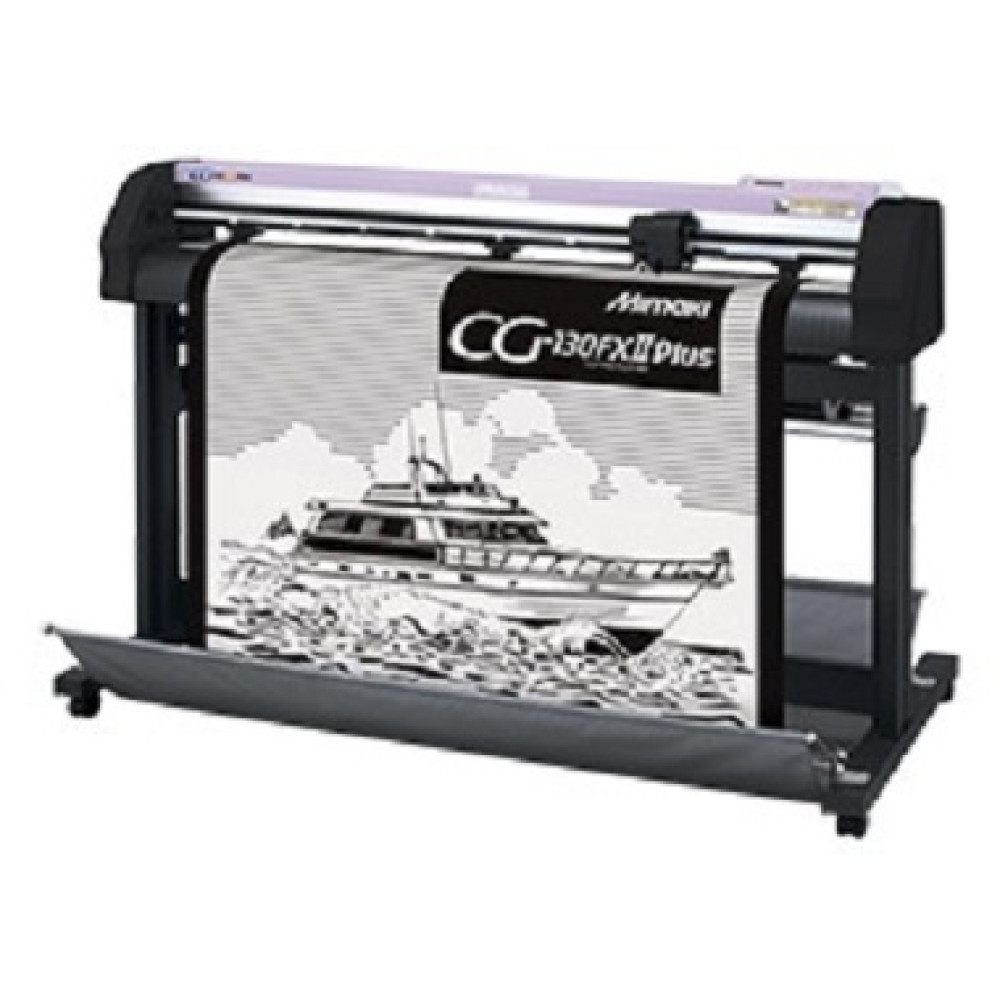

Mimaki CG-130FXII Plus Multi Cutting Plotter
$1,300.00
Viewed 4596 times
Share This
Categories
Cart
Account
Search
Recent View
Go to Top
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Product Description
Condition: Brand New
Warranty: 2 Years Global Warranty
Payment method: Crypto Currency,Bank to Bank Transfer,Western Union,Ria Transfer,Money Gram,e.t.c
Delivery method: 4 to 5 working days (door to door delivery).
Specification:
| CG-75FXII Plus | CG-130FXII Plus | CG-160FXII Plus | ||
|---|---|---|---|---|
| Acceptable sheet width | 90mm~1,040mm (3.54"~40.9") | 90mm~1,580mm (3.54"~62.0") | 90mm~1,880mm (3.54"~74") | |
| Rolled media weight | 18kg (40 lb) or less | 22kg (49 lb) or less | ||
| Roll outsied diameter | φ200mm (7.87") or less | |||
| Effective cutting area *1 | 760mm x 51m (29.9" x 167') | 1,300mm x 51m (51.2" x 167') | 1,600mm×51m (62.9"×167’) | |
| Maximum auto cutting width *2 | 870mm (34.2") | 1,425mm (56.1") | 1,720mm (67.7") | |
| Maximum cutting speed | 100cm/s (39.3"/s) | |||
| Maximum moving speed | 140cm/s (55"/s) (In a 45° direction and in a pen-up state) | |||
| Adjustable speed range *3 | 1-10cm/s : 1cm step adjustment (0.39"-3.94"/s : 0.39" step adjustment) 10-50cm/s : 5cm step adjustment (3.94"-19.68"/s : 2" step adjustment) 50-100cm/s : 10cm step adjustment (19.68"-39.37" : 3.94" step adjustment) | |||
| Mechanical resolution | 5µm (0.0002") | |||
| Command resolution | 25μm, 10μm(MGL-IIc), 100μm, 50μm(MGL-Ic1) | |||
| Repeatability | ±0.2mm (Excluding shrinkage / expansion caused by the film temperature) | |||
| Accuracy assurance range (Repeatability) | 760mm x 10m (29.9" x 32.8') | 1,300mm x 10m (51.2" x 32.8') | 1,600mm x 10m (63.0" x 32.8') | |
| Max. pressure | 500g | |||
| Range of down pressure | Cutter | 10~20g(2g step), 20~100g(5g step), 100~500g(10g step) | ||
| Pouncing | 10~20g(2g step), 20~100g(5g step), 100~500g(10g step) | |||
| Pen | 10~20g(2g step), 20~100g(5g step), 100~150g(10g step) | |||
| Acceptable sheet *4 | Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet | |||
| Acceptable sheet for pouncing *5 | Paper thickness: 0.06~0.13mm (0.0024"~0.005") | |||
| Applicable tools *6 | Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool | |||
| Certifications | VCCI class A, FCC class A, ETL IEC 60950-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, RCM, EAC | |||
| Type of command | MGL-II c / I c1 | |||
| Interface | RS-232C, USB | |||
| Receiver buffer size | 30MB Standard (20MB when in sorting) | |||
| Operational environment | Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing) | |||
| Power requirement | AC100V~240V 1A 50/60Hz | |||
| Power consumption | 100W or less | |||
| Dimensions (WxDxH) | 1,285mm(50.5")x 700mm(27.5")x 1,217mm(47.9") | 1,825mm(71.8")x 700mm(27.5")x 1,217mm(47.9") | 2,125mm(83.6")x 700mm(27.5")x 1,217mm(47.9") | |
| Weight (with stands) | 47kg (104 lb) | 62kg (137 lb) | 70kg (154 lb) | |
