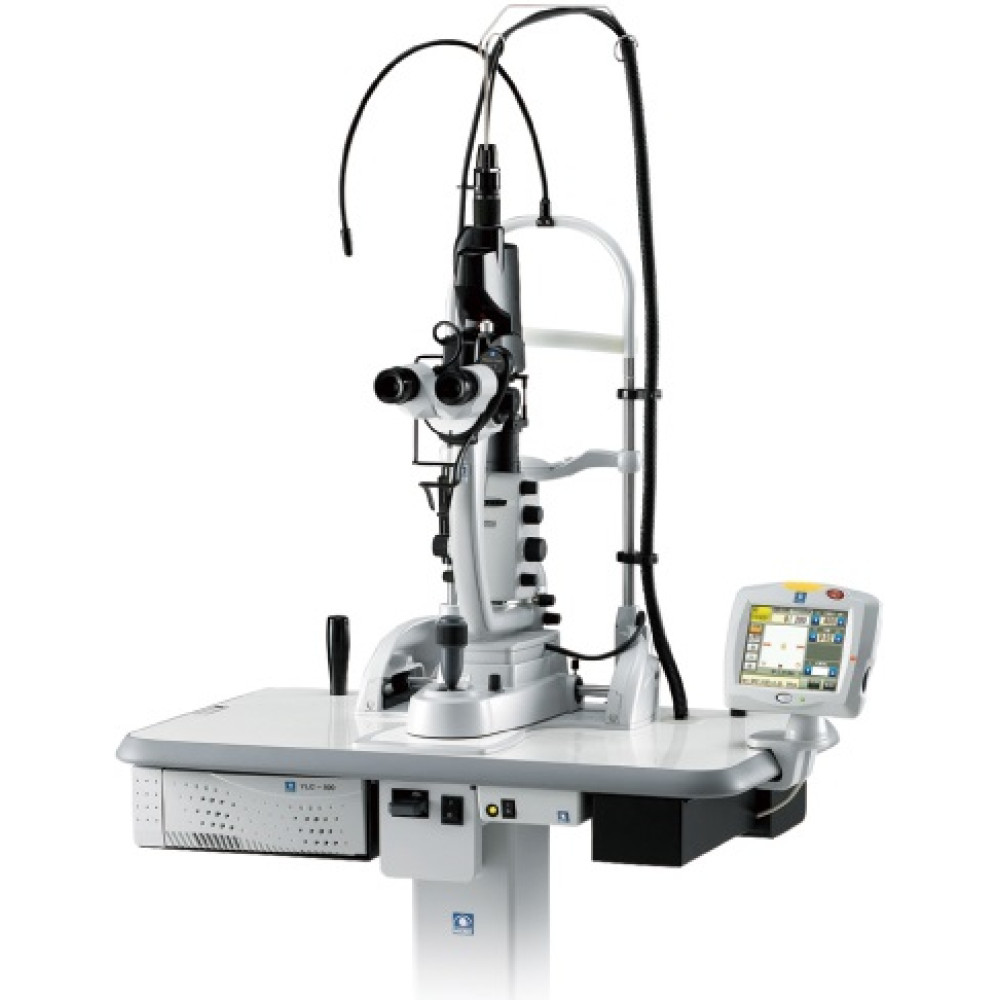

Nidek YLC-500 Yellow Laser Photocoagulator

Condition: Brand New

Warranty: 2 Years Global Warranty

Payment method: Crypto Currency,Bank to Bank Transfer,Western Union,Ria Transfer,Money Gram,e.t.c

Delivery method: 4 to 5 working days (door to door delivery).

Specification:

Main Body Specifications

Treatment laser                        Optically-pumped semiconductor laser

___________________________________________________________________________

Wavelength                               577 nm

___________________________________________________________________________

Output power                            50 to 1500 mW

___________________________________________________________________________

Output type                              Continuous wave

___________________________________________________________________________

Exposure time                          0.01 to 3.00 seconds

                                                    0.01 to 0.05 (Scan delivery mode)

___________________________________________________________________________

Interval time                            0.05 to 1.00 second

___________________________________________________________________________

Aiming laser                            Red diode, 635 nm, max. 0.3 ± 0.1 mW

___________________________________________________________________________

Power supply                          AC 100 to 240 V, 50 / 60 Hz

___________________________________________________________________________

Power consumption               250 VA

___________________________________________________________________________

Dimensions / Mass                 237 (W) x 318 (D) x 90 (H) mm / 5.6 kg*1

                                                   9.3 (W) x 12.5 (D) x 3.5 (H)" / 12.3 lbs.*1

___________________________________________________________________________

Optional accessories               Expansion box, CB top plate attachment unit, power foot switch, 3-D mouse

                                                     laser goggles, USB barcode reader, magnetic card reader

___________________________________________________________________________

*1 276 (W) x 318 (D) x 90 (H) mm / 6.55 kg, 10.9 (W) x 12.5 (D) x 3.5 (H)” / 14.4 lbs.

 with the expansion box, which is an optional accessory to connect the scan delivery unit to the main body.

Scan / Single Delivery Unit Specifications

Model                                  Scan delivery unit (YLC-500 Vixi)                                                   Single delivery unit (YLC-500)

________________________________________________________________________________________________________________________________________________________

Spot size                              100 to 500 µm (scan mode & auto manipulation mode)          50 to 990 µm (slit lamp & attachable deliveries)

                                              50 to 500 µm (single mode)

________________________________________________________________________________________________________________________________________________________

Emission pattern               Single, Square (2×2, 3×3, 4×4, 5×5), Line, Triangle,                       Single

                                             Equal Space (2v2, 3v3, 4v4, 5v5) *2,

                                             Curve, Circle, Arc (3/4 circle, 2/4 circle, 1/4 circle)

                                              Rectangle, Triple Arc, Triple Curve, Arcade Grid

________________________________________________________________________________________________________________________________________________________

Type                                    Scan slit lamp delivery unit (NIDEK SL-2000/1800)                        Slit lamp delivery unit (NIDEK SL-2000/1800)

                                             Scan attachable delivery unit (NIDEK SL-2000/1800/1600,          Attachable delivery unit (NIDEK SL-2000/1800/1600, ZEISS SL130

                                             ZEISS SL130,HAAG BQ900)                                                                   BIO delivery unit (HEINE OMEGA 500)

                                                                                                                                                              Endophotocoagulation delivery unit (ZEISS, LEICA)

________________________________________________________________________________________________________________________________________________________

Protective filter                  Electrically-powered                                                                                      Fixed

________________________________________________________________________________________________________________________________________________________

Dimensions / Mass           760(W) x 450(D) x 1300 to 1500(H) mm / 45 kg*3                           760(W) x 450(D) x 1300 to 1500(H) mm / approximately 45 kg*3

                                              29.9(W) x 17.7(D) x 51.2 to 59.1(H)” / 99.2 lbs.*3                           29.9(W) x 17.7(D) x 51.2 to 59.1(H)” / 99.2 lbs.*3

                                              (NIDEK SL-2000 scan slit lamp delivery with table)                      (NIDEK SL-2000 slit lamp delivery with table)

_________________________________________________________________________________________________________________________________________________________

*2 For equal space patterns, No. v No. indicates the number of spots in horizontal and vertical directions.

*3 The dimensions and mass differ depending on delivery types.
