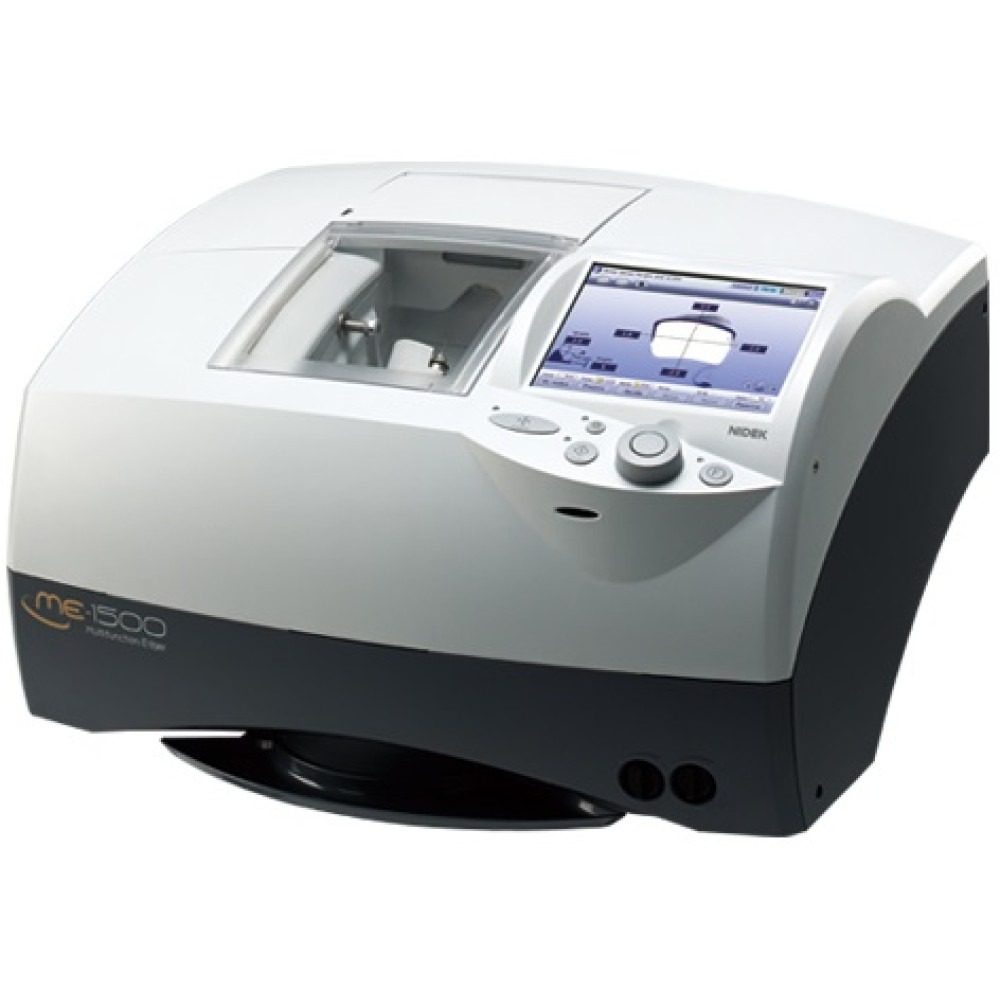

Nidek Multifunction ME-1500 Lens Edger
Your shopping cart is empty!
Product Description
Condition: Brand New
Warranty: 2 Years Global Warranty
Payment method: Crypto Currency,Bank to Bank Transfer,Western Union,Ria Transfer,Money Gram,e.t.c
Delivery method: 4 to 5 working days (door to door delivery).
Specification:
Grinding system Patternless
___________________________________________________________________________________
Mode Beveling (automatic, guided, frame curve)
Partial beveling (automatic, guided, frame curve)
Flat edging
Polishing
Chamfering (with, without polish)
Special safety beveling
Facet
Grooving (automatic, guided)
Partial grooving
Drilling
Design cut
High base curve beveling
Step beveling
Partial step processing
Mini beveling (0.4 to 0.7 mm) (0.1 mm increments)
Custom beveling
Frame changing
Soft processing
_____________________________________________________________________________________
Setting range
FPD 30.00 to 99.50 mm (0.01 mm increments)
PD 30.00 to 99.50 mm (0.01 mm increments)
1/2PD 15.00 to 49.75 mm (0.01 mm increments)
Optical center height 0 to 15.0 mm (0.1 mm increments)
Size adjustment 0 to ±9.95 mm (0.01 mm increments)
_______________________________________________________________________________________
Minimum grinding size
Flat edging ø32.0 x 19.5 mm / with nano cup (optional) ø20.0 x 15.5 mm
Bevel edging ø33.0 x 21.0 mm / with nano cup (optional) ø21.0 x 16.5 mm
Safety beveling (flat) ø34.5 x 21.5 mm / with nano cup (optional) ø23.0 x 18.5 mm
Safety beveling (bevel) ø35.5 x 22.5 mm / with nano cup (optional) ø24.0 x 19.5 mm
High base curve beveling ø39.0 x 26.0 mm / with nano cup (optional) ø27.0 x 22.5 mm
Grooving ø32.0 x 19.5 mm / with nano cup (optional) ø20.0 x 15.5 mm
_________________________________________________________________________________________
Drilling
Hole diameter ø0.80 to 10.00 mm (0.01 mm increments)
Hole depth 6.0 mm or less
Range for hole milling ø33.0 to 70.0 mm from lens rotation axis
Direction for hole milling Automatic/manual tilting 0 to 30°
Slotted hole width ø0.80 to 10.00 mm (0.01 mm increments)
Slotted hole depth 6.0 mm or less
Slotted hole length 20.8 mm or less
_________________________________________________________________________________________
Wheel configuration Type PLB-8S, PLB-2R8S
_________________________________________________________________________________________
Water supply system Pump circulation or direct connection to tap water
_________________________________________________________________________________________
Interface RS-232C - 3 ports
1 port for connection with a computer or blocker
1 port for connection with a barcode scanner
1 port for connection with a frame tracer
USB - 1 port
LAN - 1 port
_________________________________________________________________________________________
Power supply 100 to 120 V AC / 200 to 240 V AC, 50/60 Hz
_________________________________________________________________________________________
Power consumption 1.5 kVA
_________________________________________________________________________________________
Dimensions/mass 600 (W) x 496 (D) x 355 (H) mm / 52 kg
23.6 (W) x 19.5 (D) x 14.0 (H)" / 115 lbs.
_________________________________________________________________________________________
Standard accessories Pliable cup, Pliable cup for high base curve lenses, Double-coated adhesive pad,
Stylus pen, Pliable cup remover, Compound kit for polishing wheel, Adapter set,
Flat lens, Dressing stick for finishing wheel,
Dressing stick for glass roughing wheel (type PLB-2R8S),
Hexagonal screwdriver, Hexagonal wrench, RMU/LMU calibration jig, Wrench,
Tray, Drill bit, Power cord, Ferrite core
_________________________________________________________________________________________
Optional accessories Barcode scanner, Internal barcode scanner, Circular pump tank,
Mini cup set, Nano cup kit, USB flash drive, Drill bit (ø1.0, 1.2, 1.6)
